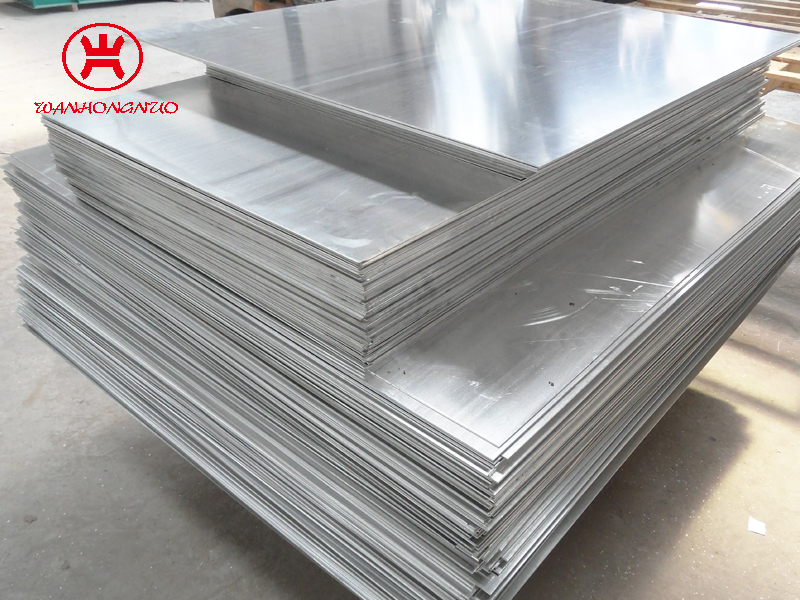

5052 Aluminum sheet plate
5052 aluminum plate is Al-Mg alloy aluminum plate. Magnesium is the main alloy element in 5052 alloy aluminum plate. It is one kind of the most widely used ,rustproof aluminum. This alloy has high strength, especially the fatigue strength:  High plasticity and corrosion resistance. It can not be strengthened in heat treatment .Its plasticity is good in the semi-cold hardening . But its plasticity is low in cold hardening. It is good corrosion resistance, good weldability, poor cutting performance, polishing.
Contact us

 Technical Specification

Material Grade5052
Material StatusO , H12,H14, H16,H18,H19, H22,H24,H26, 28,H32,H34 ,H36,H38,H111, H112,H114,H 116,H321 etc.
Thickness ( mm )0.15-600
Width ( mm )20-2650
Length ( mm )500-16000
Production StandardASTM, B209, JIS H4000-2006,GB/T2040-2012,etc
Surface Mirror , Coated, Embossed,Brushed, Polished, Anodized,etc
OEM servicePerforated, Cutting special size, Doing flatness, Surface treatment,etc .
Price TermEXW, FOB, CIF , CFR, etc
Payment TermT/T, L/C, Western Union, etc
Delivery TimeWithin 3 days for our stock size,15-20days for our production
PackageExport standard package: bundled wooden box, suit for all kinds of transport, or be required .
MOQ200kg
SampleCertificate of Test,JB/T9001C,ISO9001,SGS,TVE
ApplicationAluminum oxide plate, silo, automobile aluminum plate, mold, etc
Material BrandMingtai , Xintai , Changcheng , etc .
Factory Capacity5,000,000T per year .


 Material Chemical Composition

Al(%)Si (%)Cu(%)Zn (%)Mn(%)Fe(%)Mg(%)Cr(%)
Remainder≤0.25≤0.10≤0.10≤0.10≤0.402.2-2.80.15-0.35

  Mechanical Property

Tensile Strength σb (MPa)170-305
Yield Strength σ0.2 (MPa)≧90

  Application


  Factory

Wuxi Wanhongnuo Stainless Steel Co.,Ltd. is a professional stainless steel company based on stainless steel sheet plates,stainless steel sheet coils,stainless steel strip coils,stainless steel rod bars,stainless steel angle bars,stainless steel flat bars,stainless steel pipes,stainless steel channels,aluminum sheet plates,aluminum sheet coils,aluminum strip coils,aluminum rod bars,aluminum angle bars,aluminum flat bars,aluminum pipes,aluminum foils, providing customers with the highest quality, most comprehensive and personalized "one-stop" metal processing services.

  FAQ

1. Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer with 300000 tons of steel annually in China. We have passed the factory inspection by various international organizations and have our own sales team. Welcome to visit our factory.

2. Q: Do you have quality control system?
A: Yes,we have iso,bv,sgs certifications and our own quality control laboratory.



3. Q: How long is your delivery time?
A: Within 25-30days after receiving the deposit or L/C at sight. Longer lead time will be required for special designed products.


4. Q: Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but the delivery charges will be covered by our customers.

5. Q: Do you provide after-sale service?
A: We provide after-sales service and offer 100% guarantee on our products.
